UTM 5A+

UTM 5A+

Original price was: ₹17,820.00.Current price is: ₹13,200.00.

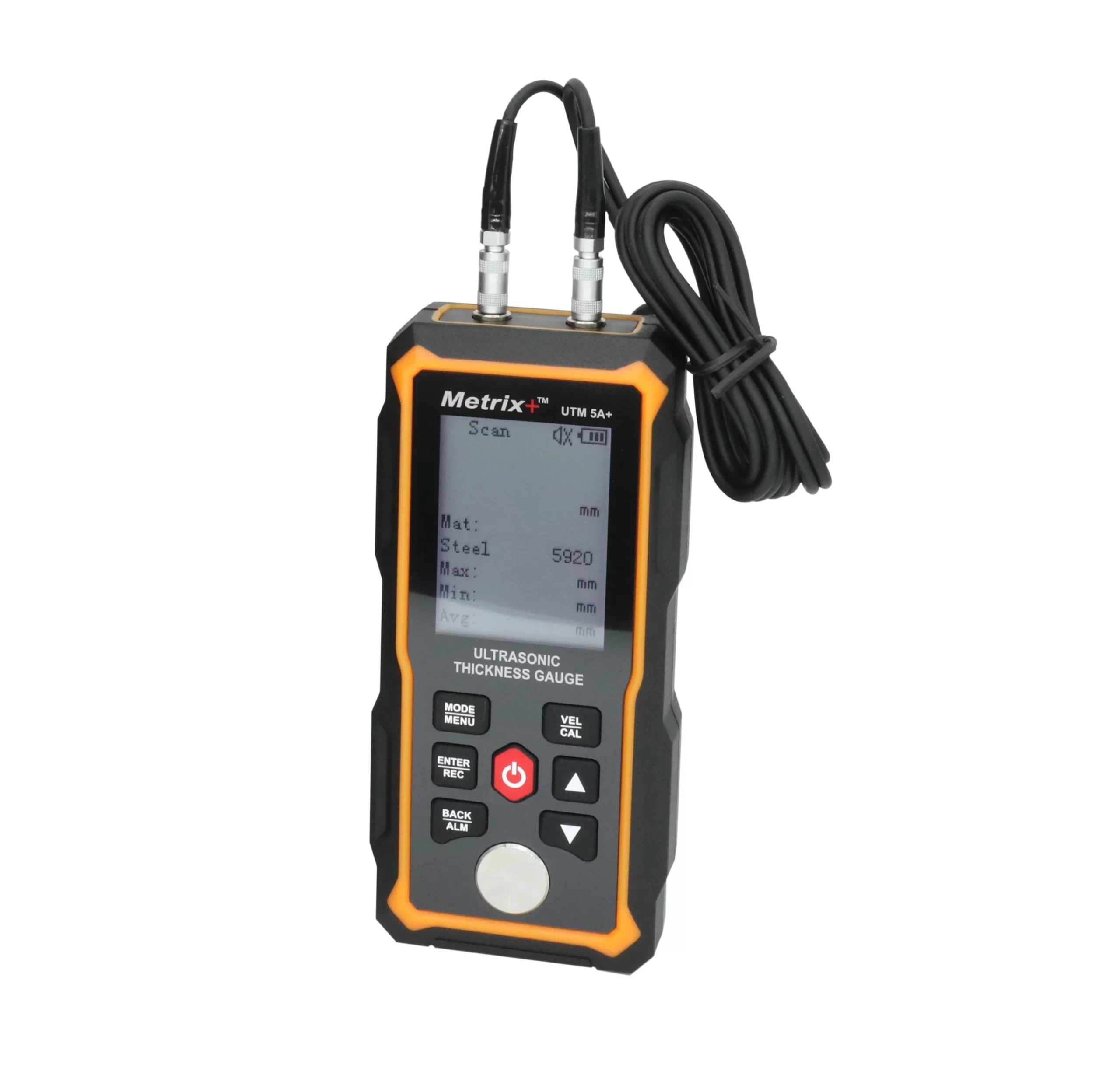

Model Metrix+ UTM 5A+
Display 240 x 320 Dot matrix display with adjustable backlight and user friendly menu operation.
Measuring range 1 ~ 300mm (in steel)
Accuracy H < 10mm, +0.1mm
H >= 10mm, +(0.1 + 1.0%H)mm
H = real thickness of sample
Resolution 0.1mm/0.01mm/0.01inch
Sound velocity range 1000 ~ 9999 m/s
Units mm, inch
Min size of tube ??20 * 3mm (steel)
Memory 300 sets of records
Additional functions Menu operation, single and continuous measurement modes, alarm measurement, sound velocity measurement and probe calibration
Power supply 2000mAh battery with type C charging
Size and weight 140 x 66 x 28.5 mm ; 0.15kg
Standard accessories Main unit, standard probe, coupling agent,?? manual, charging cable, gift box
Order on WhatsApp

Pay Online

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Features:
  • User friendly menu operation with dot matrix display
  • DC 5V/1A type C charging with 2000mAh battery
  • Memory storage with each set of measured value, sound velocity, max, min and avg value.
  • Measure material sound velocity using 1 point calibration
  • Option for silent operation and auto power off for conserving battery.
Applications:

Applicable to measure the thickness of many materials, like steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron. It is widely used in almost all kinds of industries.

Measuring principle:

Ultrasonic thickness gauge determines the sample thickness by measuring the amount of time it takes for a sound pulse, generated by an ultrasonic transducer, to travel through a test piece and reflect from the inside surface or a far wall.
