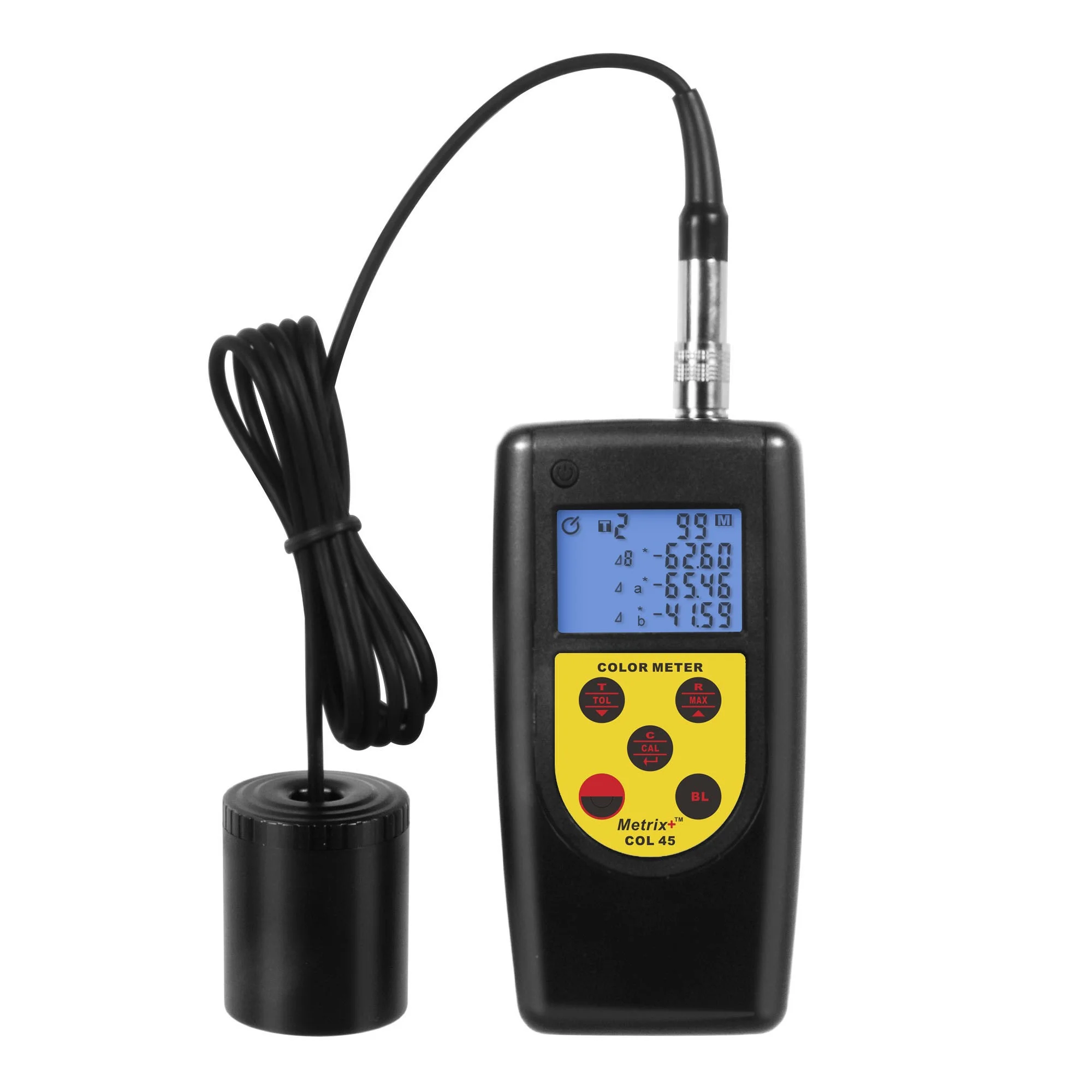

COL 45

COL 45

Original price was: ₹32,400.00.Current price is: ₹24,000.00.

Model Metrix+ COL 45
Display Triple 4-digit LCD display
Measuring geometry 45?? / 0?? ; Illumination at 45??, measurement at 0??
Color space measurement (L*,a*,b*), (L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
Color difference measurement ???(L*, a*, b*), ???(E*ab, C*ab, H*ab), ???(Y, x, y), ???(X,Y,Z), ???(Rs, Gs, Bs) or ???(WI, YI, Tw)
Illuminant White LED lamp
Measuring area approx. ?? 10 mm
Measuring range L* : 5 to 100
Target color memory 9 values, can be set by measurement or manually entered values
Measurement conditions Observe : CIE 2?? standard observer
Repeatability Standard deviation within ???E*ab 0.5 (measurement conditions: avg of measurements of standard white plate)
Min. interval between measurements approx. 2 seconds
Data storage 99 sets (direct reading from LCD display)
Operating conditions Temperature : 0 ~ 40??C, Humidity : <85% RH
Storage conditions Temperature : -10 ~ 40??C, Humidity : <70% RH
Power 4 x 1.5V AAA (UM-4) batteries
Size and weight 140 x 73 x 35mm; approx. 220g(with batteries)
Standard accessories Main unit, measuring head(sensor), white calibration card, operational manual, batteries, carrying case
Optional accessories PC interface
Order on WhatsApp

Pay Online

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Features:
  • Six color spaces for measurement and comparison: (L*,a*,b*), L*, C*ab, hab), (Y, x, y), (X, Y, Z), (Rs, Gs, Bs) or (WI, YI, Tw).
  • Statistics of max, min, avg and standard deviation displayed.
  • Color difference tolerance can be set for PASS/WARN/FAIL tests.
  • 9 different color targets can be stored for comparison.
  • User calibration function.
  • Data storage and recall.
  • Low battery indication and auto power off.
Applications:

This instrument can be used to measure the color of no lighting and non-fluorescent samples such as textile, paper, leathers, painting materials, etc. It can also be used for calculating color differences between two colors in any of the six color spaces. It is a useful tool for quality control and wide industrial applications.

Measuring Principle:

Color meter works according to the tristimulus absorption and imitates human vision. It does this by means of 3 color sensors with almost identical spectral sensitivity in the areas of red, green and blue. The color values determined in this way are represented as X, Y and Z values on the display and automatically converted to other color spaces.
