Description
Product Description

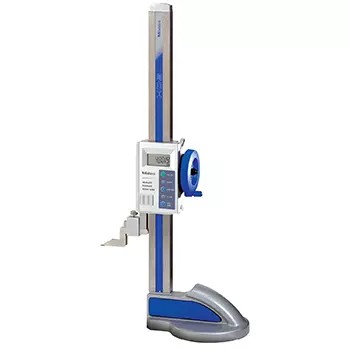

570-312 Mitutoyo ABSOLUTE Digimatic Height Gage: 0-12???/300mm
The Mitutoyo??570-312??ABSOLUTE Digimatic Height Gage has the following specifications:
- Range: 0-12???/300mm
- Resolution: .0005???/0.01mm
- Accuracy: +/- .0015???/.03mm
- Weight: 10.14lbs/4.6kgs
Features:
- Built in ABSOLUTE linear encoder
- This encoder eliminates the necessity of setting the reference point at every power-on.
- It has improved reliability because no over-speed error will occur.
- Fine-adjustment carriage to feed the slider finely.
- Carbide-tipped scriber is provided.
- With SPC data output.
Technical Data:
- Display: LCD, 6-digit
- Length standard: ABSOLUTE electrostatic capacitance type linear encoder
- Max. Response speed: Unlimited
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 5000 hours under normal use
Functions:
- Function Origin setting
- ABS/INC switching
- Presetting
- -/+ switching
- Data hold
- Data output
- Inch/mm conversion (inch/mm models)
- Alarm: Low voltage
- Counting value composition error
Mitutoyo ABSOLUTE Digimatic Height Gages:
