Description
3 pcs Flexible CTs.??Range : 120 / 1200A AC
Probe Length : 18″ / 460mm (approx)
Minimum bending Diameter : 35mm
Conector Diameter : 23mm
Cable Diameter : 14mm
Cable Length from Probe to Box : 1700mm
Cable Length from Box to Output : 1700mm

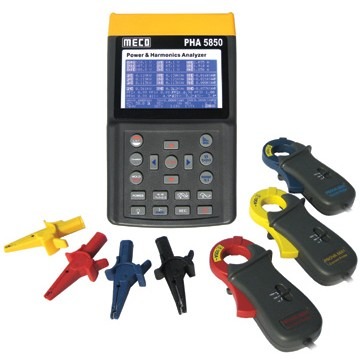

Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
Display of 35 Parameters in one screen (3P4W)
Programmable CT (1 to 600) and PT (1 to 3000) Ratios
RMS, PEAK Value & Crest Factor
True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
Power Factor, Phase Angle ( ?? ) & Energy (WH, KWH, KVARH, PFH)
Average / Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period
Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample / Period)
Analysis of total Harmonics Destortion (THD-F)
Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
Built in timer & Calender for Data Logging
512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
Optical Isolated RS-232C ~ USB Interface
Calculated Unbalanced Current through Neutral line
Graphic Phasor Diagram
Facility to retrieve Power Data & Harmonics on Meter Screen
Software for easy download of Recorded Data & Transient events
Graphic Phasor Diagram
Facility to retrieve Power Data & Harmonics on Meter Screen
Software for easy download of Recorded Data & Transient events
