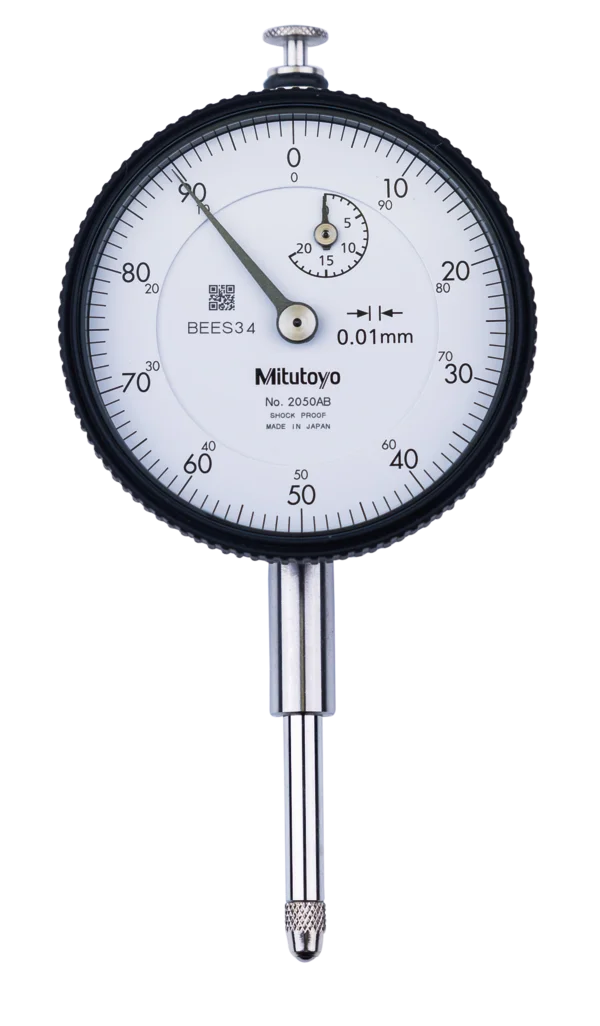

Dial Gauge, Lug Back, ISO Type 20mm, 0,01mm 2050

Dial Gauge, Lug Back, ISO Type 20mm, 0,01mm 2050

Original price was: ₹5,538.00.Current price is: ₹4,260.00.

Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Range:
20 mm
Range
per rev.:
1 mm
Graduation:
0.01??mm
Graduation:
0.01
Scale:
0-100
Measuring force:
0,4-2
MPE any 1/10
revolution:
6????m
MPE any 1/2
revolution:
10????m
MPE any 1
revolution:
11????m
MPE measuring range:
20????m
H MPE (Hysteresis):
4????m
R MPE (Repeatability):
3????m
Mass:
149??g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
Cushioned end point:
Yes
fu:
4????m
Order on WhatsApp

Pay Online

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Standard Type, 20 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Dimension:
