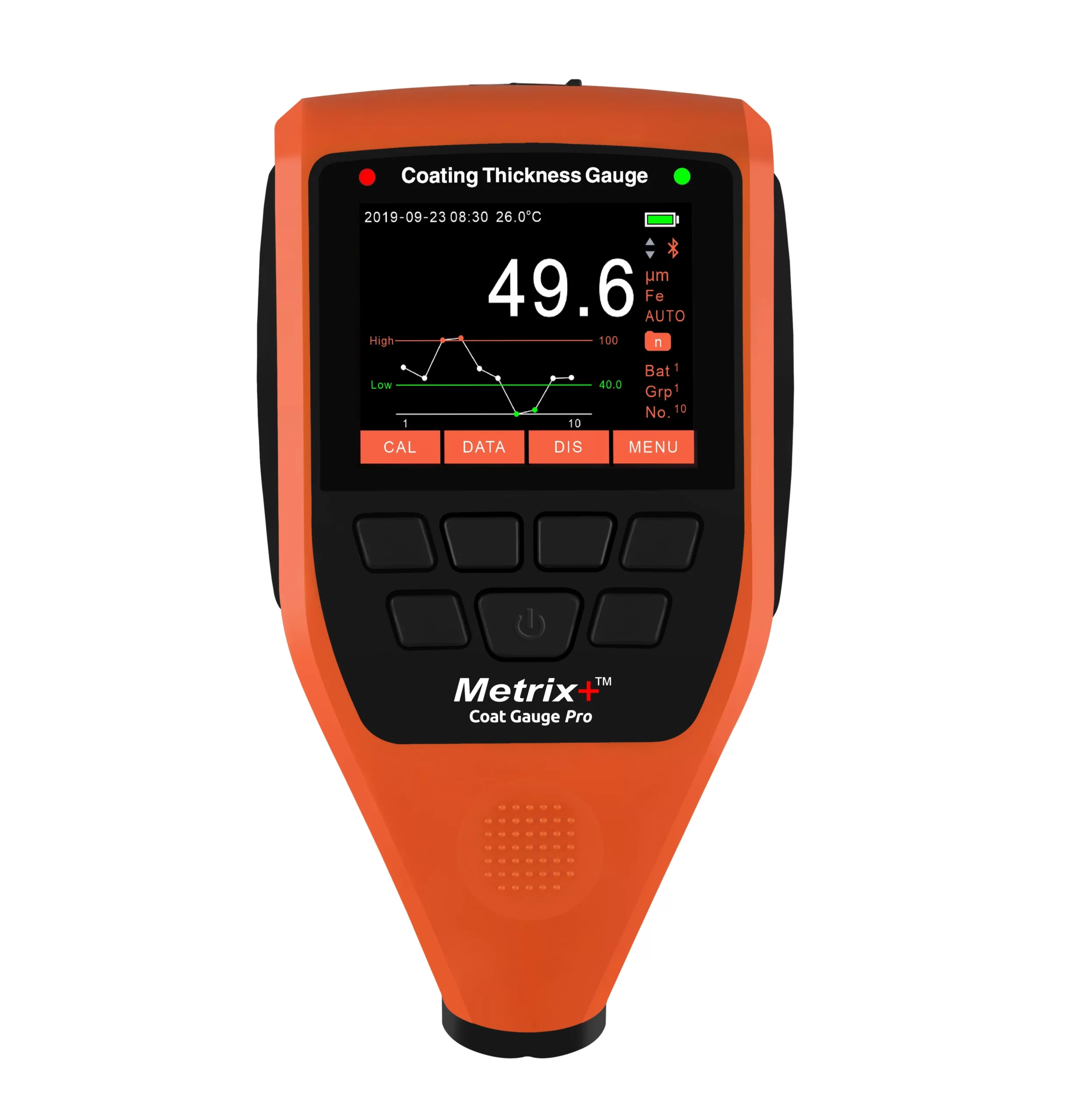

Coat Gauge Pro

Coat Gauge Pro

Original price was: ₹15,660.00.Current price is: ₹11,600.00.

Model Metrix+ Coat Gauge Pro
Measuring principle Magnetic induction(F) & Eddy Current(NF)
Measuring range 0 – 2000um
Accuracy ??(2% + 1um)
Resolution 0.1um (0~100um)
1um (> 100um)
Calibration Zero point and multi-point calibration
Storage 10*13*10 measurement data
Statistics Number of Readings, Max, Min, Mean, Sample Standard Deviation, Coefficient of Variation, Number below Limit, Number above Limit
Units um, mm, mils, inch
Minimum curvature radius 5mm(convex)
25mm(concave)
Minimum measuring area Diameter 15mm
Minimum thickness of substrate 0.20mm(F)
0.03mm(NF)
Power supply 2 x 1.5V AA battery
Operation environment Temperature: -10 to 50???
Humidity: 20 ~ 90% RH
Storage environment Temperature: -20 to 60???
Humidity: 20 ~ 90% RH
Size 146mm ?? 76mm ?? 32mm
Material and weight ABS
Weight 137g (not including batteries)
Standard Accessories Coating Thickness Gauge, ???0??? calibration block, standard foils, factory calibration certificate,??batteries, technical manual, hard carry case.
Order on WhatsApp

Pay Online

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Integrated probe Digital Coating Thickness Gauge or DFT meter with measuring range upto 2000um on F and NF substrates featuring trend graph, bluetooth, data storage and clear backlit display.

Features:
  • Automatic substrate recognition
  • On display calibration guide
  • Trend graph with alarm limits
  • Bluetooth for data acquisition
  • Statistics measurement and in-built data storage
  • Clear backlit display
Applications:

The Instrument is designed for measuring the thickness of paint or galvanized layer on iron and stainless steel surface and measuring the thickness of paint or plastic film on aluminum and copper surfaces.

Measuring Principle:

This instrument has an integrated probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of nonconductive coatings on non-magnetic substrates.
