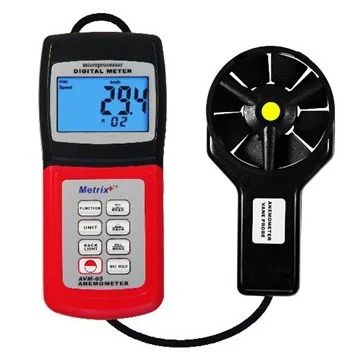

AVM 05

AVM 05

Original price was: ₹7,290.00.Current price is: ₹5,400.00.

Model Metrix+ AVM 05
Display 13mm 4-digits LCD
Measuring range Air velocity Range Resolution Accuracy
0.4 ~ 45.0m/s 0.1 ??+(2%n + 0.1m/s)
1.4 ~ 162.0km/h 0.1 ??+(2%n + 0.1km/h)
80 ~ 8860ft/min 1 ??+(2%n + 1ft/min)
0.8 ~ 88knots 0.1 ??+(2%n + 0.1knots)
Air flow 0 ~ 9999 CMM(cubic metres/min 0.001 ~ 1 ??+(2%n + 1m3/min)
0 ~ 9999 CFM(cubic feet/min) 0.001 ~ 1 ??+(2%n + 1ft3/min)
Beaufort scale 0 ~ 12 0.1 ??0.5
Wave height 0 ~ 14m 0.1 ??0.1
Air temperature 0 ~ 60??C / 32 ~ 140??F 0.1??C / 0.1??F 0.5??C / 0.9??F
Units Air velocity : m/s, ft/min, knots, km/hr; Air flow : CMM, CFM; Beaufort scale : force; Wave height : m; Air temperature : ??C/??F
Data storage 24 groups
Sampling rate per second approx
Sensor Air velocity/flow sensor : conventional angled vane arms with low friction ball bearing
Temperaure sensor : Precision thermistor
Operating conditions 0 ~ 50??C; Humidity < 80%RH
Power 4 x 1.5V AAA(UM-4) batteries
Size and weight Main unit : 156 x 67 x 28mm; Sensor head : 72mm diameter; 260g(excl. batteries)
Standard accessories Main unit, manual, batteries
Order on WhatsApp

Pay Online

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Features:
  • Built in temperature measurement.
  • A sensitive balance vane wheel rotates freely in response to air flow
  • Reading convertible to different measurement units.
  • Data memory for storing and recalling values later.
  • Data hold and auto power off.
  • Backlit display.
Applications:

An anemometer is a device used for measuring wind speed with additional features of wind direction, temperature and relative humidity. It is a common instrument in weather stations, metrological departments and checking air conditioning and heating systems.

Measuring Principle:

The digital anemometer measures wind speed by measuring the speed of the fan(vane), whose axis is parallel to wind direction, using a revolution counter and converting it into readable format.
